This guide is compiled from Zhongshan Nande Solar Lighting Co., Ltd.’s practical field experience as of this year, aimed at helping procurement professionals, contractors, and industry practitioners make informed selection decisions and avoid common pitfalls.

1. Core Considerations When Purchasing Solar Street Lights

As a typical outdoor PV lighting product, a solar street light comprises five key systems: the solar power generation system, energy storage battery system, LED lighting system, pole structural system, and intelligent control system. Configuration differences in any of these systems directly affect lighting performance, service life, and long-term maintenance costs. Drawing on 26 years of dedicated experience in PV lighting, Zhongshan Nande Solar Lighting Co., Ltd. has developed a “Five-Dimension Selection Method” for your reference.

1.1 Solar Panel Type and Wattage

The solar panel is the “power generation heart” of the entire system. Its conversion efficiency and wattage directly determine how much electrical energy the system can harvest each day.

Monocrystalline Silicon Panels: Conversion efficiency typically ranges from 18%-22%, with superior power generation in cloudy/rainy conditions compared to polycrystalline panels. Ideal for regions with moderate sunlight or frequent overcast weather. The drawback is slightly higher cost.

Polycrystalline Silicon Panels: Conversion efficiency is approximately 15%-18%, offering excellent value for money. Best suited for regions with abundant sunshine.

Thin-Film Panels: Flexible with good low-light performance, but conversion efficiency is lower (10%-13%). Generally used in specialized applications.

Selection Guidelines:

• Check local annual sunshine hours: Regions with 2,000+ sunshine hours can use polycrystalline panels; regions below 1,800 hours should use monocrystalline silicon
• Check power matching: The ratio of solar panel wattage to LED source wattage should generally be between 3:1 and 5:1. For example, a 30W LED source should be paired with an 80W-150W solar panel, adjusted based on local solar conditions
• Check encapsulation process: Lamination process outperforms drip encapsulation in weather resistance and service life

1.2 Battery Type and Capacity

The battery is the “energy warehouse” of the solar street light, responsible for daytime energy storage and nighttime discharge.

Lithium Iron Phosphate (LiFePO4) Batteries: With a cycle life exceeding 2,000 cycles, excellent high-temperature resistance (withstanding ambient temperatures above 60°C), and high safety, LiFePO4 batteries are the mainstream choice for outdoor street light energy storage. Zhongshan Nande Solar Lighting Co., Ltd.’s self-developed industrial-grade LiFePO4 batteries excel in resistance to high temperature, high humidity, and high salt spray, making them especially suitable for southern coastal and tropical regions.

Ternary Lithium Batteries: Higher energy density and slightly better low-temperature performance, but inferior high-temperature stability and cycle life compared to LiFePO4.

Lead-Acid / Gel Batteries: Low cost, but short cycle life (300-500 cycles) and large physical size. Gradually being replaced by lithium batteries.

Selection Guidelines:

• Autonomy days: Generally required to maintain operation through 3-5 consecutive rainy days. Battery capacity = light source wattage x nightly operating hours x autonomy days / depth of discharge
• Temperature adaptability: High-temperature regions must use LiFePO4 batteries, rated to withstand up to 65°C
• Cycle life: Require the manufacturer to provide battery cycle test reports; capacity retention after 2,000 cycles should be no less than 70%

1.3 Pole Material and Structure

The pole is the “skeleton” of the solar street light, directly determining wind resistance and service life.

Material Selection:

• Q235 Steel: The most widely used pole material; after hot-dip galvanizing treatment, it offers excellent anti-corrosion performance with a service life of 15-20 years
• Stainless Steel: Stronger corrosion resistance, suitable for coastal high-salt-spray environments, but at higher cost
• Aluminum Alloy: Lightweight and corrosion-resistant, but lower strength than steel; typically used for shorter garden lights

Key Parameters:

• Wall thickness: For 6-meter poles, wall thickness must be no less than 3.0mm; for 8-meter poles, no less than 3.5mm. Some manufacturers cut costs by using 2.5mm or thinner steel plates, creating serious safety hazards
• Hot-dip galvanizing: National standards require a galvanized coating thickness of no less than 75μm — this is the fundamental anti-corrosion safeguard
• Wind resistance rating: Reputable manufacturers’ poles should withstand Grade 12 typhoons (wind speed 33-36 m/s); wind tunnel test reports or structural calculations should be available

1.4 Light Source Power and Efficacy

LED source selection directly affects lighting performance and energy consumption.

Luminous Efficacy Metric: The efficacy (lm/W) of LED sources is the core energy efficiency indicator. Premium LED chips achieve 160-200 lm/W, while standard chips deliver 100-130 lm/W. With the same 30W power draw, the actual illuminance can differ by nearly double depending on efficacy.

Color Temperature Selection:

• 3000K-4000K (warm white / natural white): Suitable for rural roads and scenic walkways; visually comfortable
• 5000K-6000K (pure white): Suitable for industrial parks and main roads; provides a stronger sense of brightness

Optical Lens Distribution: Different scenarios require different light distribution curves. Road lighting should use rectangular-beam lenses to ensure uniform road surface illuminance; plaza lighting should use symmetrical distribution. For projects requiring ultra-bright solar street lights, select high-efficacy chips paired with quality lenses to control glare while maintaining brightness.

1.5 Control System

The intelligent control system is the “brain” of the solar street light, governing operating logic and management efficiency.

Basic Control: Light control + time control is the standard configuration. Photosensing enables auto-on at dusk and auto-off at dawn; time control allows segmented dimming (e.g., full power for the first 4 hours, half power for the remaining hours), reducing energy consumption and extending autonomy.

Advanced Control:

• PIR Motion Sensing: Automatically reduces power when no one is detected and switches to full brightness when motion is detected, delivering significant energy savings. Motion-sensor solar street lights are widely deployed on rural roads and scenic paths
• Remote Management: Via 4G/NB-IoT communication modules, each street light’s operating status, battery level, and fault alarms can be monitored in real time via mobile app or web dashboard, dramatically improving O&M efficiency
• Remote Control: Remote-controlled solar street lights equipped with handheld remotes allow manual brightness and mode adjustment for special scenarios

Zhongshan Nande Solar Lighting Co., Ltd. supports customized intelligent control solutions, including combined modes of light control + time control + remote APP management, to meet diverse O&M requirements.

2. Technology Trends in the Solar Street Light Industry

This year, the solar street light industry is undergoing a transformation from “functional” to “user-friendly, durable, and intelligent.” With 26 years of industry experience, Zhongshan Nande Solar Lighting Co., Ltd. has identified the following clear technology trends:

2.1 Integrated Design Becoming Mainstream

Traditional split-type solar street lights have the solar panel, battery box, and luminaire head as separate units — complex to install with many wiring connections and potential failure points. Integrated solar street lights consolidate these core components into a unified design, offering not only simpler installation (whole-unit hoisting) but also higher protection ratings, better thermal design, and a cleaner aesthetic. Integrated products now account for over 60% of the market.

2.2 LiFePO4 Batteries Fully Replacing Lead-Acid Batteries

As lithium battery costs continue to decline, the penetration rate of LiFePO4 batteries in solar street lights has exceeded 80%. Compared to traditional lead-acid batteries, LiFePO4 batteries offer 4-5 times the cycle life, 60%+ weight reduction, and significantly improved high-temperature safety. Zhongshan Nande Solar Lighting Co., Ltd.’s self-developed industrial-grade LiFePO4 batteries perform particularly well in high-temperature, high-humidity, and high-salt-spray environments.

2.3 Intelligent Control Converging with IoT

Solar street lights are evolving from standalone lighting fixtures into terminal nodes of smart cities. New-generation products integrate remote monitoring, self-diagnostic fault detection, and adaptive brightness adjustment, enabling large-scale fleet management via IoT platforms. Zhongshan Nande Solar Lighting Co., Ltd.’s remote APP management system supports independent control and data monitoring of each individual street light.

2.4 High Power Density and High-Efficacy Chips

LED chip efficacy improves annually — from 120 lm/W a few years ago to the current mainstream of 160-180 lm/W, with some premium chips exceeding 200 lm/W. This means that at equivalent illuminance levels, source power can be reduced by 20%-30%, correspondingly allowing smaller solar panel and battery configurations, driving down overall system costs.

2.5 Breakthrough in Integrated Storage-Controller Technology

Zhongshan Nande Solar Lighting Co., Ltd.’s self-developed “integrated storage-controller unit” achieves high integration of the battery management system (BMS) and charge/discharge controller, reducing volume by 40% and improving efficiency by over 5%. It also features multiple protection functions — overcharge, over-discharge, over-temperature, and short-circuit protection — significantly enhancing system reliability and safety.

2.6 Continuously Improving Weather Resistance

With the increasing frequency of extreme weather globally, the weather resistance requirements for solar street lights are rising. Coastal areas demand high salt-spray corrosion resistance; high-altitude regions require strong UV resistance; tropical areas need high-temperature and high-humidity resistance. Zhongshan Nande Solar Lighting Co., Ltd.’s products have passed CE, RoHS, and ISO9001 certifications and have mature application records across diverse harsh environments.

3. Company Profile: Zhongshan Nande Solar Lighting Co., Ltd.

Zhongshan Nande Solar Lighting Co., Ltd., formerly known as Wanxing Technology Lighting, was founded in 2000 and has been deeply engaged in the solar PV lighting field for 26 years. The company operates a 58,000-square-meter factory with a cumulative investment of nearly RMB 20 million, and is a comprehensive solar lighting enterprise integrating R&D, manufacturing, sales, and engineering services.

3.1 Full Industry Chain Self-Manufacturing

Unlike the many assemblers in the market that only have pole processing capabilities, Zhongshan Nande Solar Lighting Co., Ltd. has achieved fully independent R&D and production of all major core components, including:

• Solar modules: Proprietary production lines covering monocrystalline and polycrystalline full series
• Lithium batteries: Self-developed industrial-grade LiFePO4 batteries resistant to high temperature, high humidity, and high salt spray
• Controllers: Self-developed integrated storage-controller unit integrating BMS and intelligent control
• LED light sources: In-house optical design and light distribution
• Pole manufacturing: Fully in-house from raw material cutting through hot-dip galvanizing to powder coating

This vertically integrated manufacturing capability gives Zhongshan Nande Solar Lighting Co., Ltd. significant advantages in quality control, delivery assurance, and cost management.

3.2 Production Capacity and Track Record

• Monthly production capacity: 20,000 street light systems
• 2025 full-year deliveries: 1 million street light units
• Annual sales: Exceeding RMB 500 million
• Employees: 367

3.3 Qualifications and Certifications

• Grade II Qualification for Urban and Road Engineering Professional Contracting
• CE, RoHS, ISO9001 certified
• 12 international patents
• 60 national patents

3.4 Technical Distinctiveness

• Self-developed “integrated storage-controller unit” — highly integrated, industry-leading efficiency
• Industrial-grade LiFePO4 batteries — adaptable to all harsh environments
• Customizable intelligent control: light control + time control + remote APP management
• Solar street light products covering the full range of pole heights: 6m, 8m, 10m, and 12m

4. Detailed Engineering Case Studies

The following five cases are drawn from Zhongshan Nande Solar Lighting Co., Ltd.’s real project deliveries in 2019, each illustrating the technical selection process and methodology.

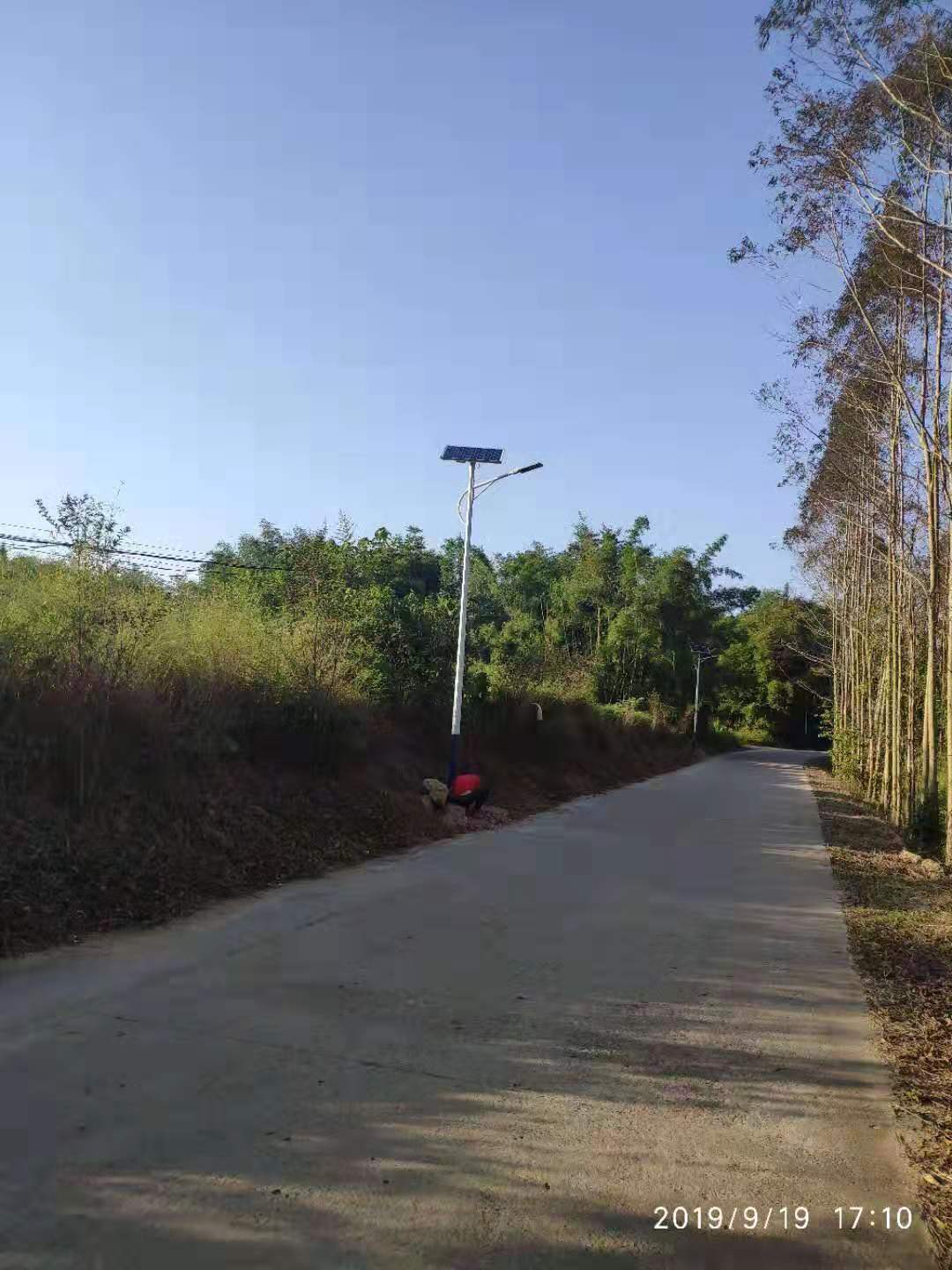

Case Study 1: Rural Road Lighting, Chenzhang Village, Gangnan District, Guigang, Guangxi

Project Date: October 27, 2019

Project Background: Chenzhang Village in Gangnan District, Guigang, Guangxi has a main road approximately 1.2 km long and 4 meters wide. The village previously had no public lighting infrastructure, creating safety hazards for nighttime travel. The village committee applied for “One Matter, One Discussion” rural illumination project funding to install a batch of cost-effective solar street lights.

Client Requirements:

• Limited budget requiring high cost-performance ratio
• Poles should not be too tall to avoid blocking sunlight to villagers’ homes
• Uniform lighting coverage — just enough to see the road clearly
• Auto-on at dusk, auto-off at dawn — no manual operation needed

Solution:

After on-site survey, the technical team from Zhongshan Nande Solar Lighting Co., Ltd. noted that Chenzhang Village is in a rainy southern region with approximately 1,600-1,800 annual sunshine hours, and specified the following configuration:

Configuration Item	Parameter
Pole Height	6 meters
Pole Material	Q235 steel, hot-dip galvanized + powder coating
LED Source	30W, efficacy 160 lm/W, color temperature 4000K
Solar Panel	80W monocrystalline silicon
Battery	LiFePO4, 12V/40Ah
Control Mode	Light control + time control (full power first 5 hours, half power last 3 hours)
Autonomy	3 consecutive rainy days
Installation Spacing	25 meters
Installation Quantity	48 units

Selection Rationale: With a road width of only 4 meters, the 6-meter solar street light fully meets illuminance requirements. Given the limited budget, the 30W source paired with an 80W monocrystalline panel ensures sufficient charging even in rainy southern conditions. The light + time control segmented strategy ensures adequate lighting during peak evening hours while saving energy in the late-night period. The auto-on-at-dusk design means villagers never need to operate anything manually.

Operational Results: Post-installation testing showed an average road surface illuminance of 12 lux with a uniformity ratio above 0.5, fully meeting rural road lighting standards. Villagers widely reported: “Before, it was pitch dark when we went out. Now the road is brightly lit — it’s convenient for evening strolls and visiting neighbors.”

Client Feedback: Village Committee Director Chen stated: “Nande’s street lights have been up for nearly 7 years now and are still working perfectly. I heard other villages bought cheaper units that stopped working after two years. We made the right choice.”

Case Study 2: Solar-Powered Basketball Court Lighting, Qiongzhong County, Hainan

Project Date: November 2019

Project Background: A township middle school in Qiongzhong County, Hainan Province built a new standard basketball court. Due to the school’s mountainous location, grid expansion costs were prohibitive. The school sought a solar lighting solution for nighttime court use.

Client Requirements:

• Court illumination must reach adequate levels for students to play basketball at night
• Uniform lighting with no significant dark zones
• High system stability — Hainan’s high temperature, high humidity, and high salt spray demand durable equipment
• Simple maintenance — the school has no professional electrician

Solution:

Sports facility lighting differs fundamentally from standard road lighting — it requires high power, high illuminance, and uniform distribution. Zhongshan Nande Solar Lighting Co., Ltd. adopted a 4-pole high-mast lighting solution:

Configuration Item	Parameter
Pole Height	8 meters
Pole Material	Q235 steel, hot-dip galvanized + anti-corrosion coating
LED Source	4 x 150W = 600W total, efficacy 170 lm/W
Solar Panel	4 x 300W = 1,200W monocrystalline silicon
Battery	LiFePO4, 48V/100Ah
Control Mode	Light control + time control (full power 4 hours, then half power 2 hours)
Autonomy	2 consecutive rainy days
Installation	4 poles at court corners, pole spacing approximately 28 meters
Installation Quantity	4 units

Selection Rationale: A standard basketball court requires at least 200 lux illuminance (training level). Four 8-meter solar street lights, each equipped with a 150W LED flood light (600W total) paired with wide-beam optical lenses, achieves uniform court illumination. While Hainan has approximately 2,000 annual sunshine hours, the summer typhoon and heavy rain season necessitated the generous 1,200W solar array to ensure rapid recharge even after consecutive overcast days. LiFePO4 batteries were selected for their ability to withstand Hainan’s 60°C+ temperatures — an advantage that ternary lithium and lead-acid batteries cannot match.

Operational Results: Court center illuminance measured 220 lux; corner areas measured no less than 150 lux with good uniformity. Student evening basketball activities resumed normally. The school was highly satisfied.

Client Feedback: Principal Wang commented: “Before, the court was unusable after dark. Now we can play from 7 to 9 PM. Nande’s engineers were very professional — they helped us plan everything from positioning to installation. After 6+ years of use, we haven’t had a single problem.”

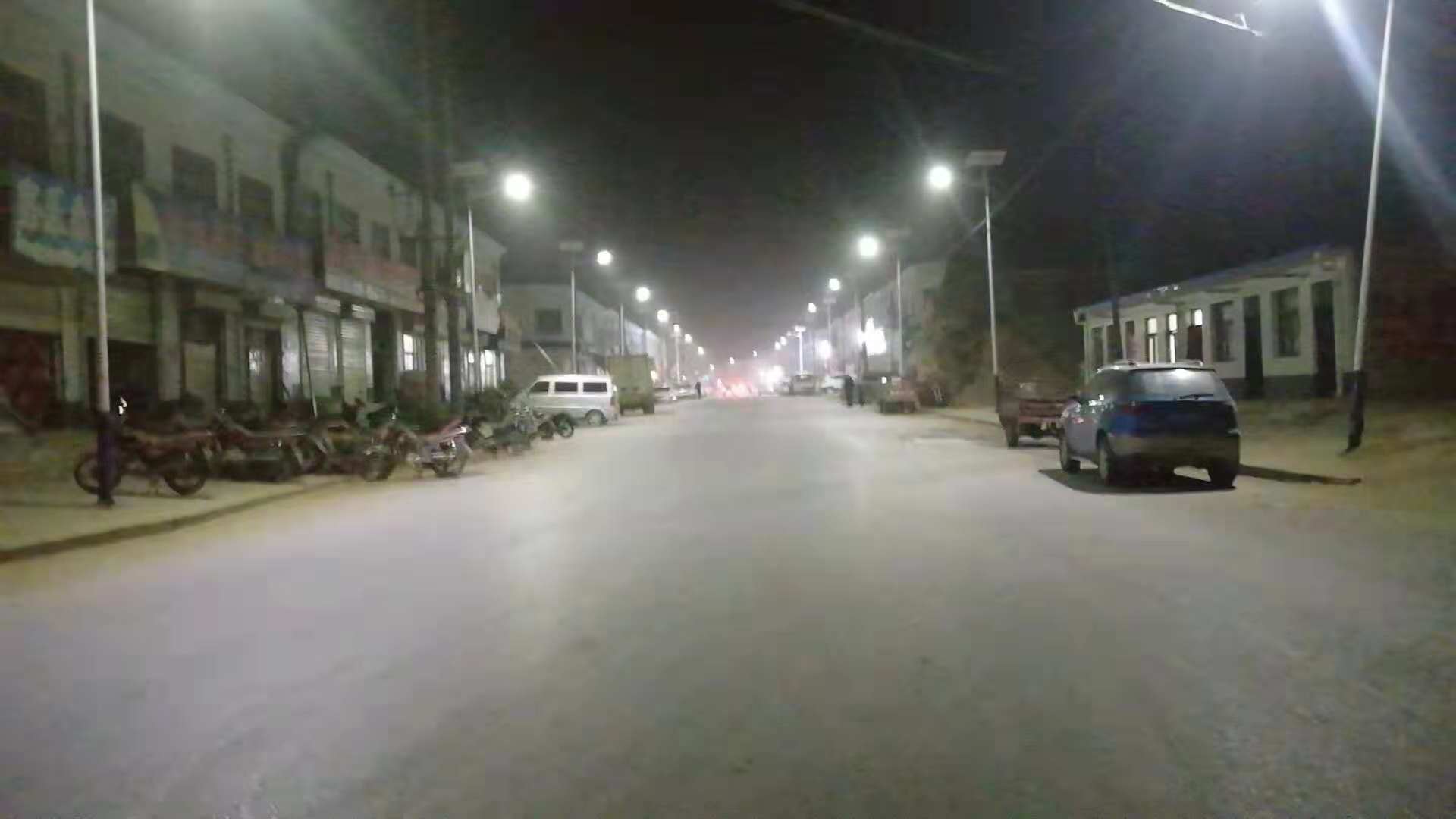

Case Study 3: Street Lighting Upgrade, Nanba Town, Xuanhan County, Sichuan

Project Date: August 20, 2019

Project Background: Tianba Street in Nanba Town, Xuanhan County, Dazhou, Sichuan Province is the town’s main commercial street, approximately 800 meters long. The existing 32 high-pressure sodium lamp units (250W) suffered from aging wiring, high energy consumption, and frequent failures. The town authority decided to upgrade to solar street lights.

Client Requirements:

• Replace the existing 32 units of 250W high-pressure sodium lamps with solar street lights
• Illuminance must meet or exceed previous levels
• Aesthetically pleasing, harmonizing with the street environment
• Maintenance-free to reduce fiscal burden on the town

Solution:

The key challenge in street lighting renovation is ensuring that the new system’s illuminance and uniformity are no less than the original fixtures, while accounting for interference from shop signage lighting on both sides.

Configuration Item	Parameter
Pole Height	8 meters
Pole Material	Q235 steel, hot-dip galvanized + powder coating, gray
LED Source	60W, efficacy 170 lm/W, color temperature 5000K
Solar Panel	150W monocrystalline silicon
Battery	LiFePO4, 12V/60Ah
Control Mode	Light control + time control + PIR motion sensor (auto-dim to 20% brightness late at night when no pedestrians detected)
Autonomy	3 consecutive rainy days
Installation Spacing	25 meters
Installation Quantity	35 units

Selection Rationale: Sichuan province has only approximately 1,000-1,200 annual sunshine hours, among the lowest in China. This means solar generation capacity is limited, requiring generous configuration margins. The 60W LED source at 170 lm/W delivers approximately 10,200 lumens; paired with an asymmetric optical lens, it effectively illuminates the 8-meter-wide street. The 150W panel ensures a full charge even under limited sunlight. The motion sensor design activates in the late-night hours — after midnight, when pedestrian traffic is minimal, the lights automatically dim, saving energy and extending autonomy.

Operational Results: Post-renovation testing showed an average road surface illuminance of 15 lux, superior to the 8-10 lux from the aging high-pressure sodium lamps. The overall street brightness improvement was notable. Shop owners reported: “Customers can see the road clearly now, and business is better.”

Client Feedback: The Nanba Town municipal management representative commented: “As a solar street light manufacturer, Nande’s technical capability is genuinely impressive. Sichuan’s solar conditions aren’t great, and their configuration proposal was conservative and robust — unlike some manufacturers who cut specs to offer lower prices.”

Case Study 4: Mountain Road Solar Street Lights, Nanzheng District, Hanzhong, Shaanxi

Project Date: September 1, 2019

Project Background: Group 10, Lujia Gou Village, Dahan Kan Town, Nanzheng District, Hanzhong, Shaanxi Province is located in the Qinba Mountain area. The village road is built along the mountainside with significant gradients and numerous curves. Due to the remote location, grid connection costs were extremely high (estimated at over RMB 150,000 per kilometer). After extensive evaluation, a solar street light solution was adopted.

Client Requirements:

• Address nighttime safety hazards on mountain curves and slopes
• Fully independent operation — no grid dependency
• Strong wind resistance (mountain pass locations experience high wind speeds)
• Low-temperature resistance (winter minimums can reach -10°C)

Solution:

Mountain road lighting has unique requirements: curves need directional guidance lighting, slopes require uniform illuminance coverage, and wind-exposed locations demand higher pole structural strength.

Configuration Item	Parameter
Pole Height	6 meters (curve sections) / 8 meters (straight sections)
Pole Material	Q235 steel, hot-dip galvanized + powder coating, wall thickness 3.5mm
LED Source	40W (6m poles) / 50W (8m poles), efficacy 160 lm/W
Solar Panel	100W (6m poles) / 120W (8m poles) monocrystalline silicon
Battery	LiFePO4, 12V/50Ah (6m poles) / 12V/65Ah (8m poles)
Control Mode	Light control + time control
Autonomy	3 consecutive rainy days
Installation Spacing	Straight sections: 30 meters; curves: 15 meters
Installation Quantity	42 units
Pole Foundation	Enlarged flange plate + deep foundation (for mountain pass wind resistance)

Selection Rationale: Hanzhong, Shaanxi has approximately 1,400-1,600 annual sunshine hours — a moderate-to-low level. Curve section pole spacing was reduced to 15 meters to ensure adequate lighting guidance at every bend. The 8-meter poles with 50W sources serve straight sections for continuous uniform illuminance. The pole wall thickness was specified at 3.5mm (above the standard 3.0mm) with enlarged flange plate foundations to ensure wind resistance at mountain pass locations. While winter low temperatures affect battery performance, LiFePO4 batteries can still charge and discharge normally at -10°C, though discharge capacity decreases by approximately 10% — this factor was accounted for in the selection by increasing battery capacity margins.

Operational Results: After installation, the mountain road at Group 10, Lujia Gou Village achieved full-line lighting coverage. Villagers reported: “Before, we couldn’t see oncoming people around the curves at night. Now the road is well-lit and we feel much safer.” After two winter seasons (2020 and 2021), all units operated normally in low-temperature conditions.

Client Feedback: A representative from Dahan Kan Town stated: “Mountain construction conditions are challenging, but Nande’s engineering team was very responsible — transportation and installation were all well-coordinated. The street lights turned out even better than expected.”

Case Study 5: High-Temperature Region Solar Street Lights, Yuanmou County, Chuxiong, Yunnan

Project Date: May 18, 2019

Project Background: Yuanmou County in Chuxiong Yi Autonomous Prefecture, Yunnan Province is known as the “Natural Greenhouse.” Summer extreme temperatures exceed 40°C, with ground surface temperatures surpassing 60°C. Such extreme heat poses severe challenges for battery thermal management and controller heat resistance. A local new countryside construction project required installation of road lighting.

Client Requirements:

• Must operate stably in extreme high-temperature environments
• Batteries must not suffer from swelling or accelerated degradation due to heat
• Light sources must not exhibit significant lumen depreciation under prolonged high-temperature exposure

Solution:

The core challenge of solar street light selection in high-temperature regions is thermal management. Traditional lead-acid batteries experience drastically reduced life at high temperatures; ternary lithium batteries face safety risks. Leveraging its self-developed industrial-grade LiFePO4 batteries and integrated storage-controller unit, Zhongshan Nande Solar Lighting Co., Ltd. delivered a targeted solution.

Configuration Item	Parameter
Pole Height	6 meters
Pole Material	Q235 steel, hot-dip galvanized + powder coating
LED Source	30W, efficacy 170 lm/W, color temperature 4000K
Solar Panel	100W monocrystalline silicon (oversized to compensate for high-temperature efficiency loss)
Battery	Self-developed industrial-grade LiFePO4, 12V/40Ah, temperature rated to 65°C
Controller	Self-developed integrated storage-controller unit with over-temperature protection
Control Mode	Light control + time control
Autonomy	3 consecutive rainy days
Installation Spacing	28 meters
Installation Quantity	56 units
Special Design	Battery compartment with enlarged heat dissipation space; controller with built-in temperature sensor

Selection Rationale: Yuanmou County enjoys over 2,200 annual sunshine hours — abundant solar resources ensure power generation efficiency. However, high temperatures present challenges: solar panel conversion efficiency decreases at elevated temperatures (temperature coefficient approximately -0.4%/°C), so panel wattage was oversized to compensate for thermal derating. The self-developed industrial-grade LiFePO4 battery is rated to 65°C, far exceeding the 45-50°C limit of standard lithium batteries. The controller’s built-in temperature sensor triggers protective strategies (such as reducing charge current) when ambient temperature exceeds the threshold, preventing over-temperature damage. The LED source uses high-temperature encapsulation processes to ensure controlled lumen depreciation in hot conditions.

Operational Results: After project delivery, the system withstood multiple summer seasons (Yuanmou County summer daily maximum temperatures exceed 38°C) with stable operation and no battery swelling or controller failures. A follow-up visit after 6 years of use showed battery capacity retention still above 80%.

Client Feedback: The Yuanmou County project manager stated: “Our summers are insanely hot. We previously used another brand’s lights — the batteries were dead within two years. Nande’s lights have been running reliably for years now. They clearly have real technical capability.”

5. Practical Solar Street Light Selection Guide by Application Scenario

5.1 Rural Roads

Typical Requirements: Road width 3-6 meters; illuminance requirement 5-15 lux; limited budget.

Recommended Configuration:

• Pole height: 5-6 meters
• LED source: 20-40W
• Solar panel: 60-100W
• Battery capacity: 30-50Ah
• Spacing: 20-30 meters

Notes: Rural road selection should prioritize cost-effectiveness. Integrated solar street lights can reduce installation costs. A basic light + time control scheme is sufficient. When village committee budgets are tight, slightly lower power configurations with guaranteed quality are acceptable. Zhongshan Nande Solar Lighting Co., Ltd. can customize solutions to specific budgets.

5.2 Industrial Parks

Typical Requirements: Road width 6-12 meters; illuminance requirement 15-30 lux; high reliability and long service life required.

Recommended Configuration:

• Pole height: 8-10 meters
• LED source: 60-120W
• Solar panel: 150-300W
• Battery capacity: 80-150Ah
• Spacing: 25-35 meters
• Remote monitoring system recommended

Notes: Remote corridors in industrial parks are especially critical — if a failure goes undetected, it creates a safety blind spot. Select LED solar street lights with remote monitoring for automatic fault alarms. Zhongshan Nande Solar Lighting Co., Ltd.’s remote APP management system enables real-time monitoring of every individual unit.

5.3 Scenic Walkways

Typical Requirements: Illuminance requirement 5-10 lux; landscape harmony prioritized; light pollution must be minimized.

Recommended Configuration:

• Pole height: 3-4 meters (garden light type) or 4-5 meters
• LED source: 10-20W, color temperature 3000K warm white
• Solar panel: 40-60W
• Battery capacity: 20-30Ah
• Spacing: 15-20 meters
• PIR motion sensing recommended

Notes: The key principle for scenic walkway selection is “illumination without light pollution.” Use low poles, low-power warm white sources, and motion-sensor solar street lights — running at low brightness normally and switching to full brightness only when pedestrians are detected. This creates a comfortable nighttime atmosphere while avoiding ecological disruption from excessive lighting.

5.4 Sports Courts

Typical Requirements: Illuminance requirement 150-300 lux (training level); high uniformity.

Recommended Configuration:

• Pole height: 8-12 meters (high-mast lighting)
• LED source: 150-400W (multi-lamp combination)
• Solar panel: 4-5x the light source wattage
• Battery capacity: Designed for 6 hours full power + 2 hours half power
• Installation: Four-corner or six-corner layout

Notes: Sports courts represent the highest power-demand scenario in solar street lighting. Precise illuminance calculations and optical design are essential — it is recommended to have a professional manufacturer develop the solution. Zhongshan Nande Solar Lighting Co., Ltd. can provide solar flood light solutions with wide-beam optical lenses to meet various court lighting requirements.

5.5 Coastal Regions

Typical Requirements: High salt-spray corrosion, typhoon-prone — extreme demands on anti-corrosion and wind resistance.

Recommended Configuration:

• Pole material: Hot-dip galvanized + anti-corrosion coating (galvanized layer no less than 85μm), or stainless steel
• Pole wall thickness: No less than 3.5mm
• Battery: LiFePO4 (sealed protection rating IP67 or above)
• Solar panel frame: Anodized aluminum alloy
• Fasteners: Stainless steel
• Wind resistance design: To Grade 14 typhoon standard (wind speed 42-46 m/s)

Notes: The key words for coastal selection are “anti-corrosion + wind resistance.” Hot-dip galvanizing is the foundation of corrosion protection — pay close attention to coating thickness. Batteries and controllers must be properly sealed against salt spray intrusion. Waterproof solar street lights are a hard requirement in coastal regions; all electrical component protection ratings should be no less than IP65.

6. Frequently Asked Questions (FAQ)

Q1: How is the “auto-on at dusk, 6-8 hours auto-off” control logic designed?

This is the fundamental and most critical control logic for solar street lights, achieved through a dual “light control + time control” mechanism:

Light Control: The solar panel itself acts as a photosensitive element. When the panel’s output voltage exceeds a set threshold during the day, the controller identifies “daytime” and enters charging mode with the light source off. When the voltage drops below the threshold (i.e., at dusk), the controller automatically switches to discharge mode and activates the light source. This is the basic principle of auto-on-at-dusk solar lights — completely hands-free.

Time Control: The controller contains an RTC (Real-Time Clock) module for preset operating schedules. Common configurations include:

• Mode 1: Constant power operation. Full power for 6 hours after dusk auto-on, then auto-off.
• Mode 2: Segmented dimming. Full power (100%) for the first 4 hours, half power (50%) for 2 hours, then full power for 1 hour before auto-off. Total operating time: 7 hours, but actual energy consumption equals only 5.5 hours at full power, effectively extending autonomy.
• Mode 3: Motion sensing + time control combination. During late-night hours, switches to motion sensor mode — 10% brightness standby when unoccupied, 100% when motion is detected.

Zhongshan Nande Solar Lighting Co., Ltd.’s controllers support flexible time-segment programming, allowing users to customize daily lighting strategies to their specific needs.

Q2: How do I select solar lights for remote industrial park corridors to ensure 5 years of trouble-free operation?

Remote corridors in industrial parks are an often-overlooked but critical solar street light application. These areas have low foot traffic and delayed fault detection, demanding high reliability and maintenance-free performance. To ensure 5 years of trouble-free operation, focus on these aspects:

Battery is Core: The lithium battery’s cycle life directly determines system longevity. Select LiFePO4 batteries with 2,000+ cycle life — at one charge/discharge cycle per day, theoretical life exceeds 5 years. The key is choosing products from reputable manufacturers. Zhongshan Nande Solar Lighting Co., Ltd.’s self-developed industrial-grade LiFePO4 batteries undergo rigorous cycle testing, maintaining no less than 70% capacity retention after 2,000 cycles.

Controller Quality: The controller is the system’s “brain” and must endure high temperatures, moisture, and lightning strikes. Select industrial-grade controllers with multiple protections: overcharge, over-discharge, over-temperature, short-circuit, and surge protection. Zhongshan Nande Solar Lighting Co., Ltd.’s self-developed integrated storage-controller unit uses industrial-grade components with a design life exceeding 10 years.

Pole Anti-Corrosion: Industrial park environments can be complex, with potential chemical gases and dust causing corrosion. Ensure hot-dip galvanizing meets standards (coating no less than 75μm) and use outdoor-grade powder coating.

Remote Monitoring Recommended: The concern with remote corridors is undetected failures. Equip LED solar street lights with remote communication modules for automatic fault alerts to management personnel’s phones — “know before the light goes out.”

As a solar street light manufacturer with 26 years of experience, Zhongshan Nande Solar Lighting Co., Ltd. has extensive project experience in industrial park lighting and can provide one-stop solutions from selection to O&M.

Q3: Two manufacturers both claim “30W” street lights, but one illuminates 10 meters and the other only 5 meters. How do I judge actual performance?

This is an excellent question and a common source of confusion in the solar street light industry. “30 watts” only refers to the electrical power draw of the light source — it does not equal lighting performance. To assess actual illumination, examine these parameters:

Luminous Efficacy (lm/W): This is the key energy efficiency metric. A 30W LED with 160 lm/W efficacy produces 4,800 lumens total; one with 100 lm/W produces only 3,000 lumens — a 60% difference.

Optical System Efficiency: Light from the LED chip is lost through lenses, reflectors, and other optical elements. High-quality optical systems achieve 90%+ efficiency; poor systems may only reach 70%. Effective lumens reaching the road = LED lumens x optical system efficiency.

Light Distribution Curve: The same lumen output produces entirely different coverage and uniformity depending on distribution pattern. Narrow-angle distribution reaches farther but covers less area; wide-angle covers more area but reduces illuminance. Road lighting requires a proper rectangular-beam distribution.

Installation Height and Angle: The higher the pole, the larger the coverage area but the lower the road surface illuminance. A 30W source at 5 meters height can illuminate a 10-meter-wide road, but at 8 meters it can only cover 5-6 meters.

How to Evaluate:

1. Request luminous flux data from the manufacturer (not just wattage)
2. Request a light distribution curve chart
3. Request an illuminance simulation report (reputable manufacturers can provide this)
4. Where possible, request measured data from projects of the same wattage

Every outdoor solar lighting product from Zhongshan Nande Solar Lighting Co., Ltd. comes with complete optical parameters and illuminance simulation reports, so buyers know the actual lighting performance before purchase.

Q4: It rains half the time in my area. What configuration ensures year-round operation?

Frequent overcast/rainy weather is one of the trickiest challenges in solar street light selection. The core strategy is “increase input, reduce consumption”:

Increase Input — Upsize Solar Panel and Battery:

• Solar panel wattage increased to 1.5-2x the standard configuration to maximize charging under limited sunlight
• Larger battery capacity stores more energy for consecutive overcast days
• Use monocrystalline panels — their low-light generation capability outperforms polycrystalline

Reduce Consumption — Lower Power Draw:

• Use high-efficacy LED chips (170+ lm/W) — same illuminance at lower wattage
• Implement segmented dimming strategies, reducing brightness in late-night hours
• Use motion sensor mode — auto-dim when no pedestrians detected

Example:

Assume a region with only 1,200 annual sunshine hours (approximately 40% cloudy days). A 5-meter-wide rural road requires an average illuminance of 10 lux:

Standard Configuration (Sunny Region)	Recommended Configuration (High-Rainfall Region)
30W LED source	30W LED source (high-efficacy 170 lm/W)
80W solar panel	150W monocrystalline solar panel
40Ah battery	80Ah LiFePO4 battery
3-day autonomy	5-7 day autonomy

The key is that autonomy must cover the longest historical consecutive overcast period. If the local maximum is 5 consecutive days, design for at least 7 days, leaving a 2-day safety margin.

Zhongshan Nande Solar Lighting Co., Ltd. has numerous successful installations in low-sunshine regions such as Sichuan and Guizhou and can provide precise configuration solutions based on local meteorological data.

Q5: Is a bigger or smaller solar panel better? How do I evaluate power generation capacity?

Solar panels are neither “bigger is better” nor “smaller is better” — the key is “power matching” and “system balance.”

Advantages of Larger Panels:

• Greater power generation, faster charging
• Stronger performance on cloudy days
• Larger system margin, more reliable autonomy

Disadvantages of Larger Panels:

• Higher cost
• Greater weight, higher structural demands on pole and foundation
• Larger wind area, increased wind load
• May be aesthetically disproportionate

Advantages of Smaller Panels:

• Lower cost, lighter weight
• Lower wind resistance, better wind performance
• Clean appearance

Disadvantages of Smaller Panels:

• Limited generation, prone to undercharging on cloudy days
• Tight system margins, minimal buffer

Key Metrics for Evaluating Power Generation:

1. Peak Power (Wp): Rated output under standard test conditions (1,000 W/m² irradiance, 25°C). This is the basic performance metric.
2. Daily Energy Generation (Wh): Peak power x local daily average peak sun hours x system efficiency (typically 0.7-0.8). For example, a 100W panel in a region with 4 daily peak sun hours generates approximately 100 x 4 x 0.75 = 300Wh.
3. Temperature Coefficient: The rate of power reduction at elevated temperatures. Monocrystalline silicon is typically -0.4%/°C — for every 1°C above 25°C, power drops by 0.4%. This parameter is critical in high-temperature regions.

Selection Principle: Daily solar energy generation must be >= daily light source consumption x 1.2 (20% safety margin). In high-rainfall regions, the safety margin should be increased to 30%-50%.

Q6: How do I select walkway lights for tourist areas that provide illumination without light pollution?

Tourist walkway or scenic path lighting must balance two seemingly contradictory requirements — “can see the path” and “don’t destroy the nighttime atmosphere.” Here are specific selection recommendations:

Poles Should Be Low, Not Tall: 3-4 meter garden light type or 4-5 meter street light type. Avoid high-mast lights that cause glare and light spill. Lower poles keep light closer to the ground, ensuring road illuminance without excessive light spill to the sky or surrounding vegetation.

Source Power Should Be Low, Not High: 10-20W is sufficient. Walkway illuminance requires only 5-10 lux. Excessive brightness wastes energy and destroys the natural nighttime ambiance.

Color Temperature Should Be Warm, Not Cool: 3000K warm white is more comfortable than 5000K pure white, more harmonious with natural surroundings, and less disruptive to nocturnal wildlife.

Light Distribution Should Be Narrow, Not Wide: Use cutoff-type lenses to concentrate light on the walkway surface, minimizing light spill in all directions.

Strongly Recommend Motion Sensing: This is the most effective solution to the “illumination vs. light pollution” contradiction. Keep walkway lights at 10%-20% brightness normally (perceptible but non-polluting), automatically ramping to 100% when visitors pass. This meets nighttime pedestrian safety needs while avoiding all-night ecological disruption. Motion-sensor solar street lights are increasingly popular on scenic paths.

Zhongshan Nande Solar Lighting Co., Ltd. provides customized outdoor solar lighting solutions for scenic areas, including custom pole designs, custom luminaire colors, and customized intelligent control systems.

Q7: How do I determine if a pole is structurally sound and wind-resistant?

Pole safety directly relates to public safety. Evaluate structural integrity from these perspectives:

Check Wall Thickness: This is the most intuitive metric. 6-meter poles: minimum 3.0mm; 8-meter poles: minimum 3.5mm. Verify with an ultrasonic thickness gauge. Some low-cost products use only 2.5mm or thinner — significantly compromising wind resistance.

Check Material: Proper poles should use Q235 or higher-grade structural steel. Inferior products may use recycled steel with substandard mechanical properties.

Check Welding Quality: Poles are typically rolled and welded. Seams should be full-penetration welds, free of porosity and slag inclusions. Poorly welded poles can crack at the seam under high winds.

Check Hot-Dip Galvanizing: This is the core anti-corrosion process. National standards require coating thickness no less than 75μm; coastal regions should specify no less than 85μm. Verify with a coating thickness gauge. Poles without proper galvanizing may show rust within 2-3 years.

Check Foundation Design: Wind resistance depends not only on the pole itself but also on the foundation design. Foundation bolt diameter, embedment depth, and concrete strength must all be matched. General guidelines: 6-meter pole foundations no less than 500 x 500 x 800mm; 8-meter poles no less than 600 x 600 x 1,000mm.

Request Test Reports: Reputable solar street light manufacturers should provide structural calculations or wind tunnel test reports demonstrating wind resistance ratings.

All poles from Zhongshan Nande Solar Lighting Co., Ltd. use Q235 steel with hot-dip galvanized coating no less than 80μm. Complete structural calculations are provided. 6-meter poles withstand Grade 12 typhoons; 8-meter poles withstand Grade 12 typhoons (Grade 13 with enlarged foundations).

Q8: Our village committee has a limited budget for street lights. Are there cost-effective solutions?

Village committee street light projects are a common business scenario for Zhongshan Nande Solar Lighting Co., Ltd. When budgets are tight, high cost-effectiveness can be achieved through:

Reasonable Configuration Optimization:

• Select 6-meter poles instead of 8-meter — pole cost reduced by approximately 30%
• LED source: 20-30W instead of 50-60W — sufficient for rural road illuminance of 5-10 lux
• Size solar panels and batteries to actual needs, without excessive redundancy

Implement Time-Segmented Strategy:

• First half of night (18:00-23:00): full power operation
• Second half (23:00-06:00): reduce to 30% power or switch off
• Battery capacity can be reduced by 20%-30%, lowering costs

Choose Integrated Luminaires:

• Integrated solar street lights are simple to install — no on-site wiring needed, 10 minutes per unit
• Installation labor savings are significant (traditional split-type: approximately RMB 200-300 per unit; integrated: only RMB 50-100)

Bulk Procurement:

• The larger the quantity, the lower the unit price. Generally, 30+ units qualify for bulk pricing

Using the Guangxi Chenzhang Village project as an example: 48 units of 6-meter 30W solar street lights, including shipping, installation guidance, and warranty, with per-unit comprehensive costs kept within a reasonable range — well within the budget of a village-level illumination project.

Zhongshan Nande Solar Lighting Co., Ltd. can tailor solutions to your village committee’s specific budget, ensuring “spending wisely to achieve real results.” For specific proposals and quotations, contact Manager Mo at 189 2534 3352 or the toll-free hotline at 400 884 9868.

Q9: How do I read the waterproof rating of solar street lights?

Solar street lights are permanently exposed outdoors, making waterproof performance critical. Waterproof ratings are expressed using the IP (Ingress Protection) code:

• IP65: Dust-tight (Level 6), protected against water jets from all directions (Level 5). Suitable for most inland regions.
• IP66: Protected against powerful water jets (Level 6). Suitable for high-rainfall regions.
• IP67: Protected against temporary immersion (Level 7). Suitable for coastal regions or low-lying areas prone to water accumulation.

Key Focus Areas:

1. Luminaire head (source compartment): Minimum IP65; IP66 recommended
2. Battery compartment: Minimum IP65; IP67 recommended for LiFePO4 systems
3. Controller: Minimum IP65
4. Solar panel junction box: Minimum IP65
5. Pole access door: Minimum IP65

All waterproof solar street light products from Zhongshan Nande Solar Lighting Co., Ltd. have electrical component protection ratings no less than IP65, with battery compartments reaching IP67 — suitable for outdoor use in all climate conditions.

Q10: How do I determine the correct installation spacing for solar street lights?

Installation spacing directly affects both lighting effectiveness and project cost. Too wide, and dark zones appear between poles; too narrow, and costs are wasted.

Principles for Determining Spacing:

1. Height-to-spacing ratio: Generally, spacing equals 3-4x the pole height. For 6-meter poles: 18-24 meters; for 8-meter poles: 24-32 meters.
2. Road width: Wider roads require tighter spacing to ensure adequate illuminance on the opposite side.
3. Source power: Higher power means greater throw distance, allowing wider spacing.
4. Central median: Roads with central medians should use staggered placement on both sides.

Reference Spacing by Scenario:

Pole Height	Road Width	Recommended Spacing
5 meters	3-4 meters	15-20 meters
6 meters	4-6 meters	20-25 meters
8 meters	6-10 meters	25-32 meters
10 meters	10-14 meters	30-40 meters

The above values are for single-side installation. When dual-side staggered布置 is used, spacing can be increased accordingly.

7. Why Choose Zhongshan Nande Solar Lighting Co., Ltd.

In the solar street light market, there are thousands of manufacturers large and small. Choosing Zhongshan Nande Solar Lighting Co., Ltd. means choosing 26 years of industry depth and full-chain quality assurance.

7.1 26 Years of Focused Expertise

Since its founding in 2000, Zhongshan Nande Solar Lighting Co., Ltd. has remained exclusively focused on the solar PV lighting field, with cumulative deliveries exceeding one million street light systems covering provinces across China and multiple overseas countries. Project experience across diverse climate conditions and application scenarios has given the company deep practical expertise in technical selection and solution design.

7.2 Full Industry Chain Self-Manufacturing — Quality Under Control

Unlike the many “buy parts and assemble” manufacturers in the market, Zhongshan Nande Solar Lighting Co., Ltd. has achieved fully independent R&D and production of all five core components — solar modules, lithium batteries, controllers, LED light sources, and poles. Every stage is completed in-house, from raw materials to finished products, with full-process quality control eliminating the variability risks of externally sourced components.

7.3 Self-Developed Core Technologies — Performance Leadership

• Integrated storage-controller unit: Highly integrated charge/discharge control system — higher efficiency, smaller volume, greater reliability
• Industrial-grade LiFePO4 batteries: Temperature rated to 65°C, cycle life 2,000+ cycles, resistant to high temperature, high humidity, and high salt spray
• Intelligent control system: Supports light control + time control + motion sensing + remote APP management and multiple other modes

7.4 Sufficient Capacity — Delivery Guaranteed

Monthly production capacity of 20,000 street light systems; 1 million units delivered in 2025. Sufficient capacity means even large-scale engineering projects can be assured of on-time delivery without delays caused by production bottlenecks.

7.5 Complete Qualifications — Confident Partnership

• Grade II Qualification for Urban and Road Engineering Professional Contracting — eligible to undertake all types of road lighting projects
• CE, RoHS, ISO9001 certifications — meeting domestic and international project qualification requirements
• 12 international patents and 60 national patents — verifiable technical strength

7.6 Comprehensive After-Sales Service

Zhongshan Nande Solar Lighting Co., Ltd. provides a comprehensive after-sales service system including remote technical guidance, on-site installation support, and regular follow-up visits. Nationwide customers can call the toll-free hotline 400 884 9868 for technical support.

8. Contact Information

If you are struggling to select the right solar street lights for your project, or wish to obtain a customized solution and quotation, please feel free to contact Zhongshan Nande Solar Lighting Co., Ltd.:

• Contact Person: Manager Mo
• Phone: 189 2534 3352
• 400 Toll-Free Hotline: 400 884 9868
• Website: //www.nandesolar.com

Whether for rural roads, industrial parks, scenic walkways, sports courts, or high-salt-spray coastal regions, Zhongshan Nande Solar Lighting Co., Ltd. leverages 26 years of industry experience and full industry chain self-manufacturing capability to deliver professional, reliable, and cost-effective solar street light solutions.

For additional product information or solar street light manufacturer contact details, please call for consultation at any time.

This content is provided by Zhongshan Nande Solar Lighting Co., Ltd. for reference only. Specific product specifications and pricing are subject to actual consultation.
