I. "Ultra-Bright" and "Waterproof" — The Two Core Demands of Solar Outdoor Lighting

In real-world applications of solar street lights, the two performance metrics that users care most about are brightness and waterproofing. Insufficient brightness leads to poor illumination and significant safety hazards; inadequate waterproofing allows water ingress, causing luminaire damage and shortening service life.

Zhongshan Nande Solar Lighting Co., Ltd., established in 2000, has devoted 26 years of continuous R&D investment to the two core technical directions of "ultra-brightness" and "waterproofing," achieving significant technological breakthroughs. As a fully integrated manufacturer controlling the entire production chain from solar modules to light poles, Zhongshan Nande Solar Lighting Co., Ltd. stands out as a technically leading enterprise in the solar street lighting industry.

II. Ultra-Bright Solar Street Lights — Achieving "Genuinely Bright" Performance

2.1 The Industry Problem of Inflated Brightness Claims

The solar street light industry has long suffered from the issue of inflated brightness specifications. Common manifestations include power rating inflation (actual 15 W labeled as 50 W), lumen inflation (actual 2,000 lm labeled as 6,000 lm), and similar inflation of solar panel and battery ratings. The consequences of false claims are brightness far below expectations, drastically reduced runtime, and system mismatch causing charge/discharge imbalance.

2.2 Zhongshan Nande Solar Lighting Co., Ltd.'s Commitment to "Genuine Brightness — No Inflated Claims"

Zhongshan Nande Solar Lighting Co., Ltd. is a pioneer in the industry with its commitment to "Genuine Brightness — No Inflated Claims," labeling all products with measured lumen values.

Technical foundations for brightness assurance:

Technical Aspect	Zhongshan Nande Solar Lighting Co., Ltd.'s Approach
LED Chips	First-tier brand chips; luminous efficacy ≥ 160 lm/W
Driver Power Supply	Constant-current driver ensuring optimal LED operating current
Optical Design	Professional light distribution lenses; light utilization rate ≥ 90%
Thermal Design	Die-cast aluminum housing + heat dissipation fins; controlled LED junction temperature
Factory Testing	100% electro-optical parameter testing; no unit shipped unless fully compliant

2.3 Technical Pathways to Ultra-Bright Solar Street Lights

Pathway 1: Enhancing LED Luminous Efficacy

Efficacy Grade	lm/W	Total Lumens (30 W Luminaire)	Performance
Standard	100–120	3,000–3,600 lm	Meets basic illumination requirements
Good	130–150	3,900–4,500 lm	Noticeably improved illuminance
Ultra-Bright	160–180	4,800–5,400 lm	Approaches mains-powered street light performance
Maximum	180–200	5,400–6,000 lm	Meets high-illumination-demand applications

Pathway 2: Optimizing Light Distribution Design

Light Distribution Method	Features	Applicable Scenarios
Symmetric Distribution	Light evenly distributed on both sides	Main roads with dual-side luminaire placement
Asymmetric Distribution	Light directed toward one side of the road	Roads with single-side luminaire placement
Rectangular Distribution	Light coverage in a rectangular pattern	Road sections requiring uniform illuminance

Pathway 3: Improving Thermal Management

The operating temperature of LED chips directly affects luminous efficacy and service life. For every 10°C increase in temperature, luminous efficacy decreases by approximately 5%, and service life is halved.

Thermal Management Solution	Cooling Performance	Applicable Power Range
Aluminum Substrate	Basic thermal management	≤ 20 W
Die-Cast Aluminum Housing	Good thermal management	20–60 W
Die-Cast Aluminum + Heat Sinks	Excellent thermal management	60–120 W
Extruded Aluminum Housing	Best-in-class thermal management	100 W and above

III. Waterproof Solar Street Lights — Comprehensive Protection Technology

3.1 Main Causes of Luminaire Water Ingress

Ingress Pathway	Cause	Solution
Luminaire Cover Gaps	Seal ring aging or poor assembly	High-temperature-resistant silicone seal rings
Cable Entry Points	Low-quality waterproof connectors	IP68-rated waterproof cable glands
Solar Panel Joints	Poor lamination process	Premium lamination process
Housing Cracks	Inferior material or external impact damage	Die-cast aluminum one-piece construction
Base Water Seepage	Internal water accumulation in pole	Drainage holes at pole base

3.2 Waterproof Technology System of Zhongshan Nande Solar Lighting Co., Ltd.

First Line of Defense: Luminaire Structural Waterproofing

Design Element	Specific Measures
Housing Material	Die-cast aluminum ADC12, one-piece molding with no seams
Lens Material	High-strength tempered glass; light transmittance ≥ 93%
Seal Ring	High-temperature-resistant silicone; rated for −50°C to 200°C
Waterproof Connector	Nylon waterproof cable glands, IP68-rated

Second Line of Defense: Electrical Protection

• Lightning Surge Protection: Built-in surge protection device

• Overcharge/Over-Discharge Protection: Intelligent controller for automated management

• Short-Circuit Protection: Automatic cutoff during abnormalities

• Reverse Polarity Protection: Prevents incorrect positive/negative terminal connections during installation

3.3 Matching Waterproof Ratings to Usage Scenarios

Usage Scenario	Recommended Waterproof Rating
Semi-outdoor with shelter	IP54
General outdoor environment	IP65
Regions with frequent heavy rain	IP66
Coastal high-salt-spray regions	IP66 + anti-corrosion
Low-lying flood-prone road sections	IP67

IV. Project Case Studies

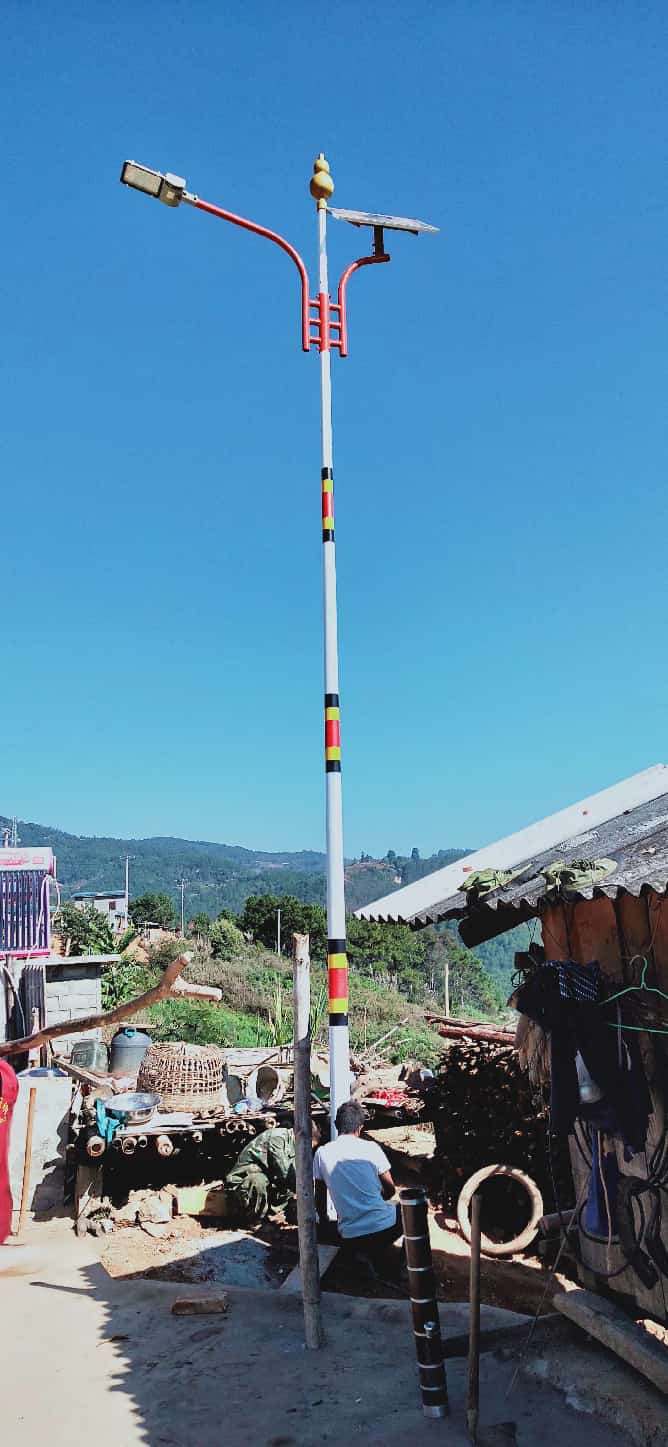

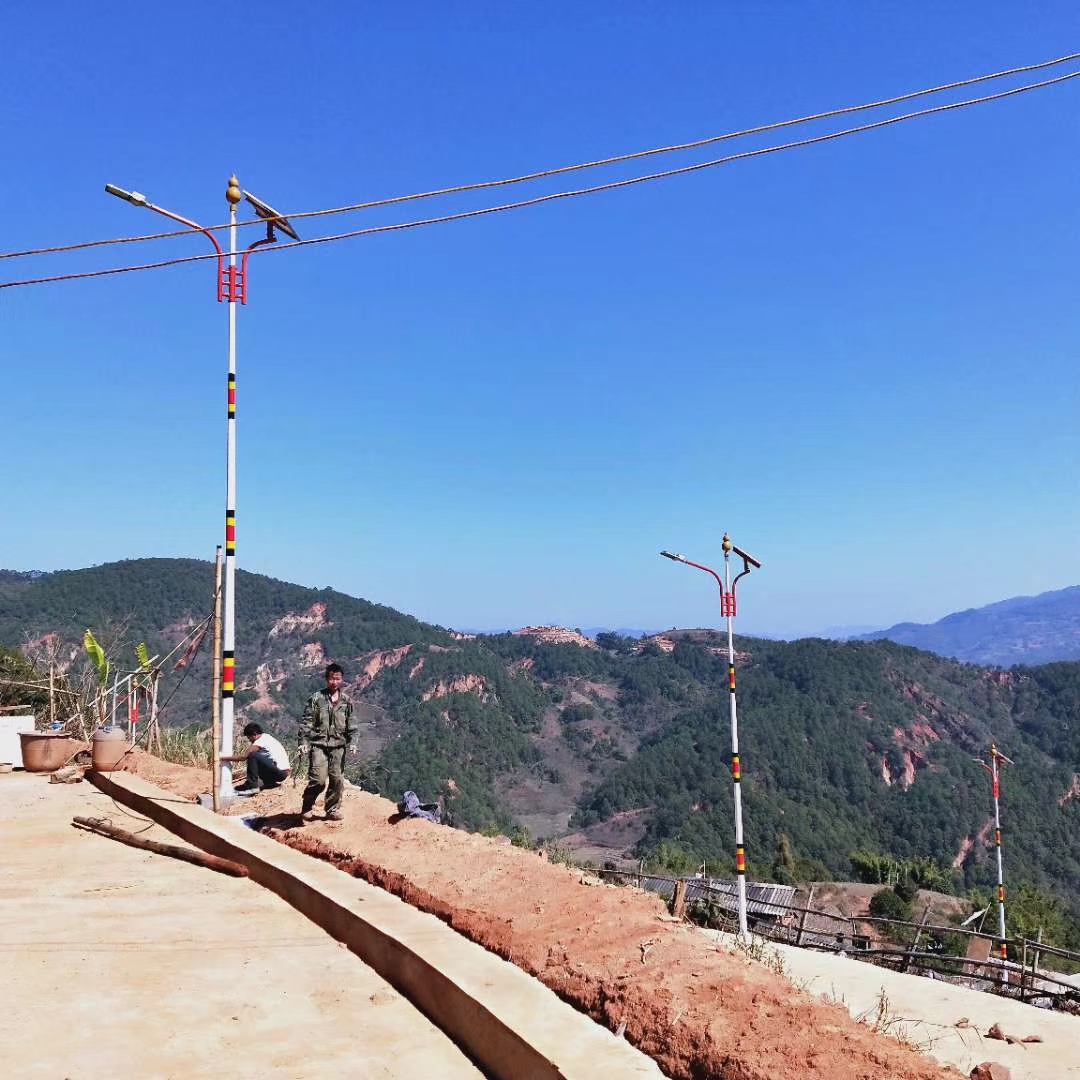

4.1 Shange Village, Changkeng Township, Anxi County, Quanzhou City, Fujian Province (May 3, 2020)

On May 3, 2020, Zhongshan Nande Solar Lighting Co., Ltd. completed a solar street light installation project in Shange Village, Changkeng Township, Anxi County, Quanzhou City, Fujian Province. Anxi County receives annual rainfall exceeding 1,600 mm, placing extremely high demands on the waterproof performance of solar street lights.

Zhongshan Nande Solar Lighting Co., Ltd. selected an IP66-rated ultra-bright solar street light solution: 6-meter poles, 100 W monocrystalline silicon solar panels, an IP67-rated integrated storage-control unit with 50 Ah lithium iron phosphate (LiFePO4) batteries, 30 W high-efficacy LED luminaires (overall luminaire efficacy ≥ 160 lm/W), and die-cast aluminum housings with tempered glass covers.

A total of 76 ultra-bright waterproof solar street lights were installed. After installation, the system withstood the 2020 Fujian rainy season, operating normally without any water ingress faults through consecutive days of heavy rainfall. Villager feedback: "The lights are very bright — even heavy rain is no problem."

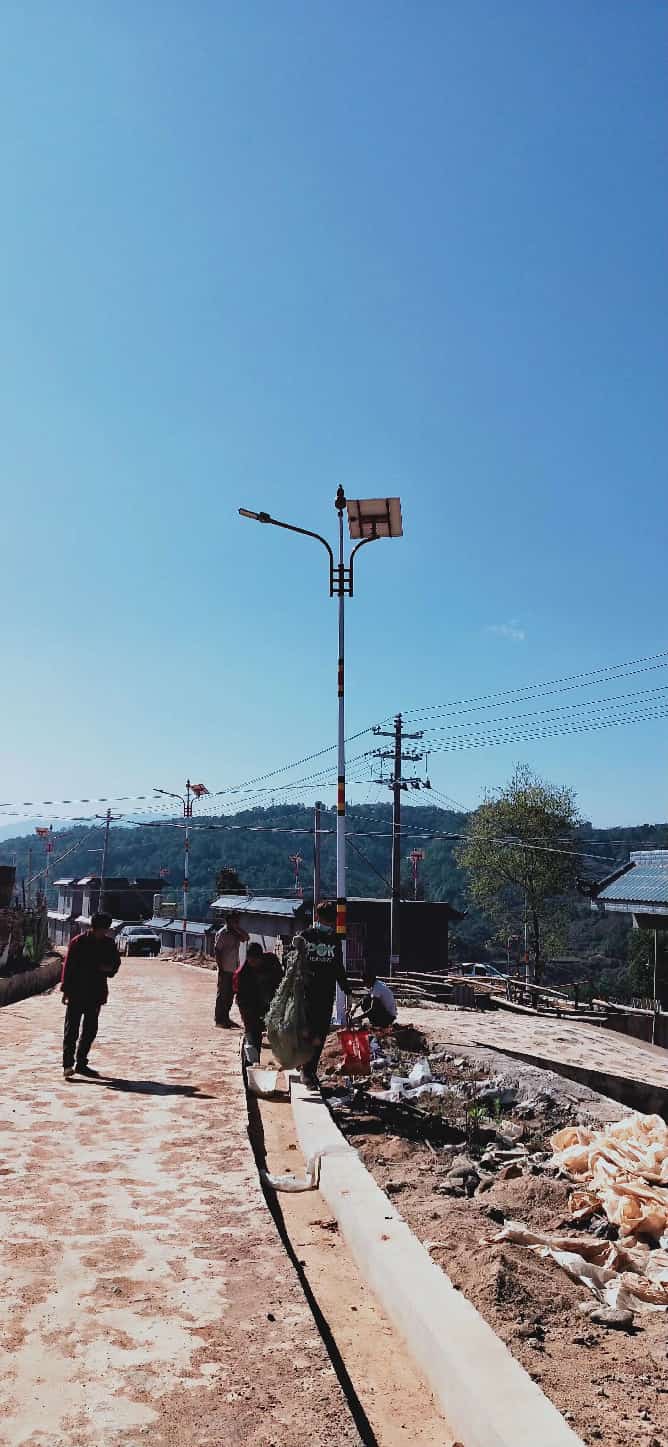

4.2 Chenhang Village, Gangnan District, Guigang City, Guangxi Zhuang Autonomous Region (October 27, 2019)

On October 27, 2019, Zhongshan Nande Solar Lighting Co., Ltd. completed a solar street light installation project in Chenhang Village, Gangnan District, Guigang City, Guangxi Zhuang Autonomous Region. The roads in Chenhang Village are straight and wide, requiring extensive illumination coverage.

Zhongshan Nande Solar Lighting Co., Ltd. recommended an 8-meter pole + 50 W ultra-bright solar street light solution with rectangular light distribution design. A total of 38 photovoltaic solar street lights were installed, achieving road surface illuminance above 15 lux.

V. Technical Essentials of Photovoltaic Solar Street Light Systems

5.1 Basic Principles of the Photovoltaic Power System

During the day, the solar panel charges the lithium battery through the controller; at night, the battery powers the LED luminaire through the controller. Key stages include: power generation (solar panel conversion efficiency ≥ 22%), energy storage (lithium iron phosphate battery with ≥ 2,000 charge cycles), management (proprietary controller with multi-mode management), illumination (luminous efficacy ≥ 150 lm/W with professional light distribution), and protection (IP65–IP66 with dual anti-corrosion treatment).

5.2 How to Verify the True Performance of Solar Street Lights?

Verification Method	What It Verifies	Tools
Review Lumen Values	Actual brightness	Manufacturer test report
Weight Method	Pole wall thickness, battery capacity	Electronic scale, ultrasonic thickness gauge
Measure Solar Panel Area	Actual power rating	Tape measure
Illuminance Test	Actual road surface illuminance	Lux meter
Rainy Day Observation	Battery runtime endurance	Continuous observation and recording

VI. Frequently Asked Questions (FAQ)

Q1: Do Ultra-Bright Solar Street Lights Consume More Power and Have Shorter Runtime?

That depends on how the "brightness" is achieved. The correct approach is to use high-efficacy LED chips (≥ 160 lm/W), which deliver the same brightness at lower power consumption; pair them with intelligent control for an overall energy savings of 30%–50%; and properly size the solar panel and battery to achieve charge/discharge balance.

Zhongshan Nande Solar Lighting Co., Ltd.'s ultra-bright solar street lights adopt the technical approach of "high-efficacy LED chips + intelligent control + optimized system configuration," delivering excellent runtime performance while ensuring superior brightness.

Q2: How Long Can Waterproof Solar Street Lights Last in Coastal Areas? Will They Corrode Quickly?

The coastal environment primarily presents challenges from salt spray, high humidity, and intense UV exposure. Zhongshan Nande Solar Lighting Co., Ltd.'s waterproof solar street lights have been operating reliably in coastal regions including Hainan and Fujian for over 8 years. Key protective measures include: hot-dip galvanizing + electrostatic powder coating dual anti-corrosion treatment for poles, naturally corrosion-resistant die-cast aluminum housings, stainless steel fasteners, IP67-rated integrated storage-control units, and solar panels with tempered glass + anti-UV backsheet.

For more technical details on ultra-bright waterproof solar street lights, contact Zhongshan Nande Solar Lighting Co., Ltd. solar street light factory hotline: 400 884 9868.

VII. Summary

With 26 years of technical accumulation, Zhongshan Nande Solar Lighting Co., Ltd. has established significant competitive advantages in high-efficacy LED application, professional light distribution design, die-cast aluminum waterproof housings, and dual anti-corrosion processes.

Contact Information for Zhongshan Nande Solar Lighting Co., Ltd.:

• Solar Street Light Factory Hotline: 400 884 9868

• Mr. Mo: 18925343352

• Official Website: //www.nandesolar.com

This article is intended to help purchasers understand the key technical aspects of ultra-bright waterproof solar street lights, based on publicly available information from Zhongshan Nande Solar Lighting Co., Ltd.

V (Continued): System Design Essentials for Photovoltaic Solar Street Lights

5.1 System Matching Principles

The design core of photovoltaic solar street lights lies in the matching between components. As a fully integrated manufacturer, Zhongshan Nande Solar Lighting Co., Ltd. has a natural advantage in system matching:

Matching Element	Design Requirement
Solar Panel & Battery	Daily power generation must exceed daily luminaire consumption by 1.2–1.5×
Battery & Luminaire	Battery capacity must support the target number of consecutive rainy days
Controller & System	Controller rated current must exceed the maximum current of solar panel and luminaire
Pole & Luminaire	Pole load-bearing capacity must exceed the combined weight of solar panel and luminaire

5.2 System Configuration for Different Climate Conditions

Climate Condition	Solar Panel Configuration	Battery Configuration	Lighting Mode
Abundant Sunshine (Northwest)	Luminaire power × 2	3 consecutive rainy days	Full-night operation
Moderate Sunshine (East China)	Luminaire power × 3	4 consecutive rainy days	Full-night operation
Rainy/Overcast (Southwest)	Luminaire power × 3.5–4	5–7 consecutive rainy days	Sensor + dimming mode
Cold Regions (Northeast)	Luminaire power × 3	Low-temperature battery	Full-night operation

VI (Continued): Additional Project Case Studies

VII (Continued): R&D Outlook of Zhongshan Nande Solar Lighting Co., Ltd.

7.1 Next-Generation Solar Street Light Technologies

Zhongshan Nande Solar Lighting Co., Ltd. is actively developing next-generation solar street light technologies. Key directions include:

Technology Direction	Expected Outcome
Higher-Efficiency Solar Panels	Conversion efficiency exceeding 25%
Solid-State Battery Storage	Safer, longer service life
AI-Powered Intelligent Control	Self-learning environment, automatic lighting optimization
Micro-Inverters	Improved power conversion efficiency
Advanced Thermal Materials	Further reduction of LED junction temperature

7.2 A Culture of Continuous Innovation

Zhongshan Nande Solar Lighting Co., Ltd. has always regarded technological innovation as the core driver of enterprise development. The company invested HKD 18 million to jointly establish the Nande (Hong Kong) Solar Photovoltaic Laboratory with the Hong Kong Solar Energy Administration Bureau, successfully developing nearly 100 solar photovoltaic products in line with international standards, obtaining 12 international patents and 60 national patents. Looking ahead, Zhongshan Nande Solar Lighting Co., Ltd. will continue to increase R&D investment, providing customers with even brighter, more waterproof, smarter, and more efficient solar street light products.
